Kee Dome® Skylight Railing

Don’t leave holes in your safety procedures

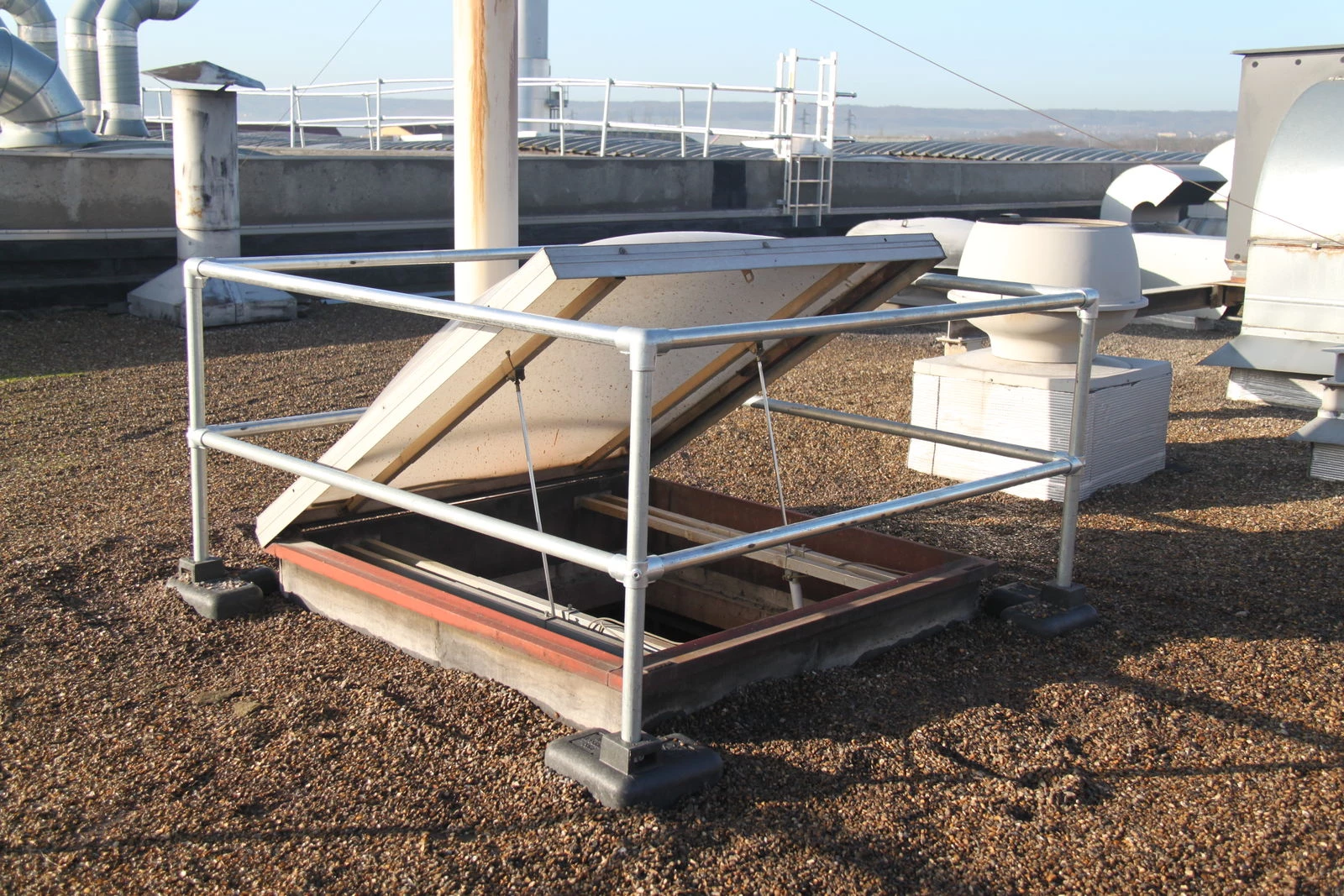

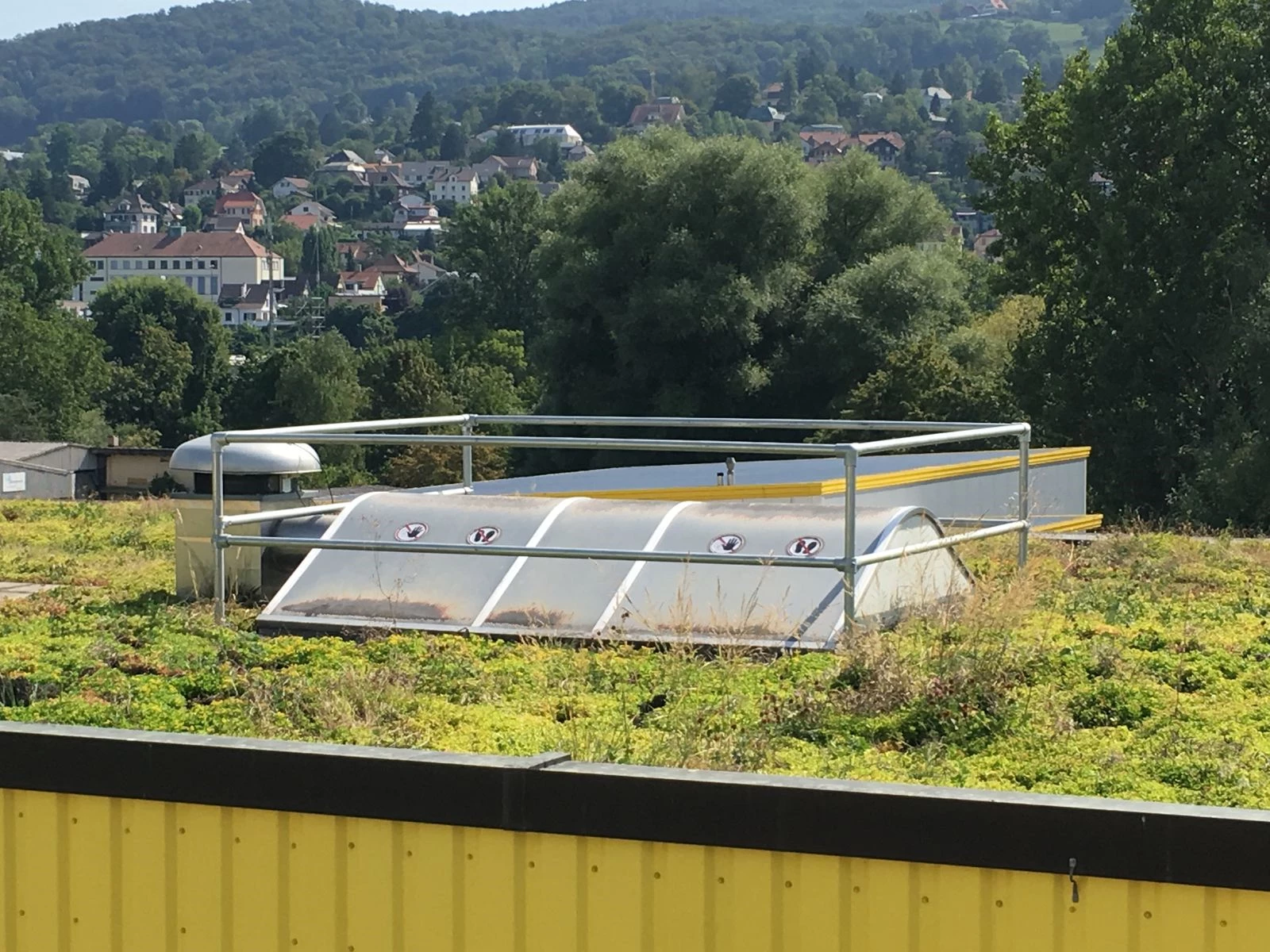

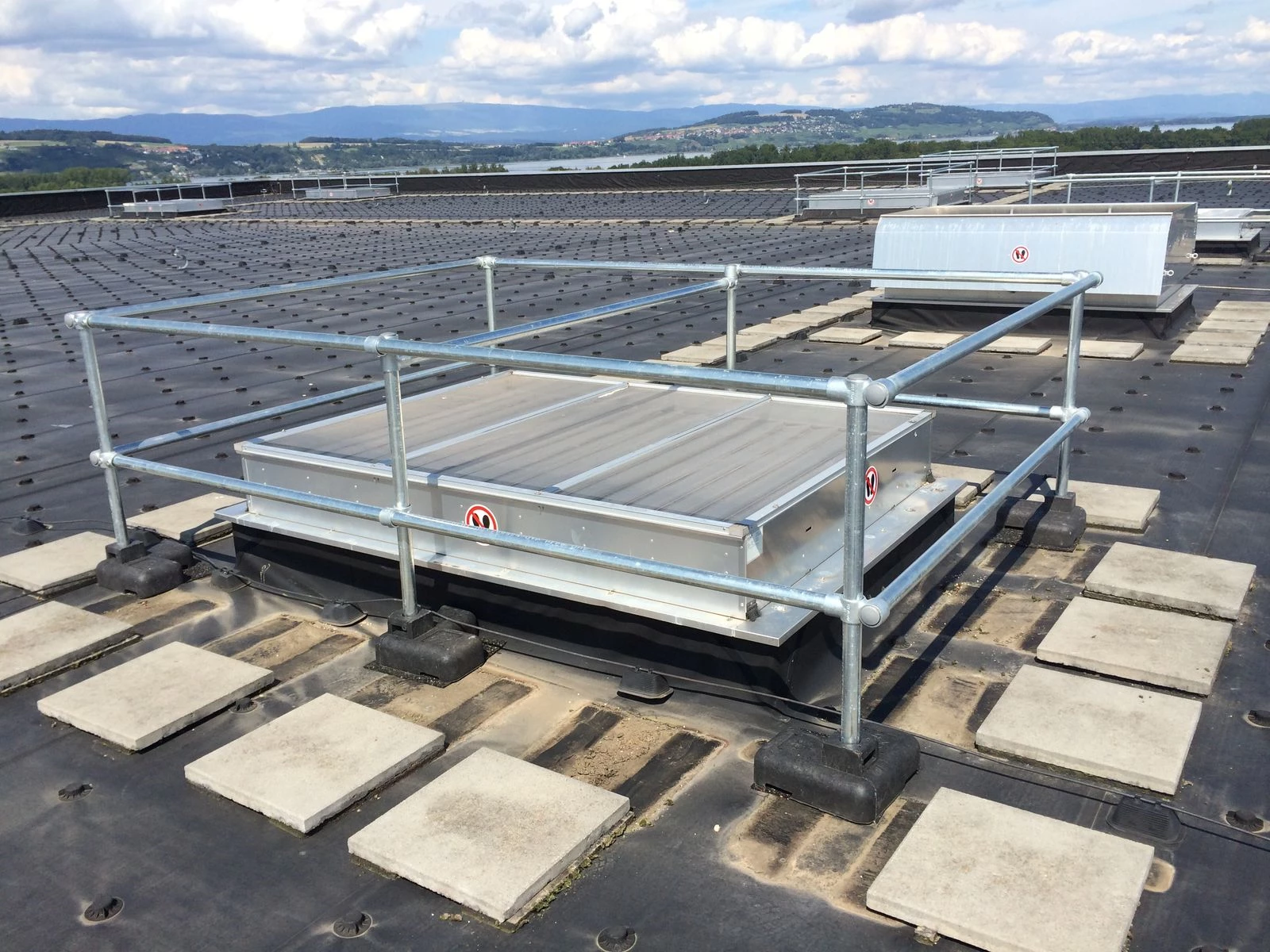

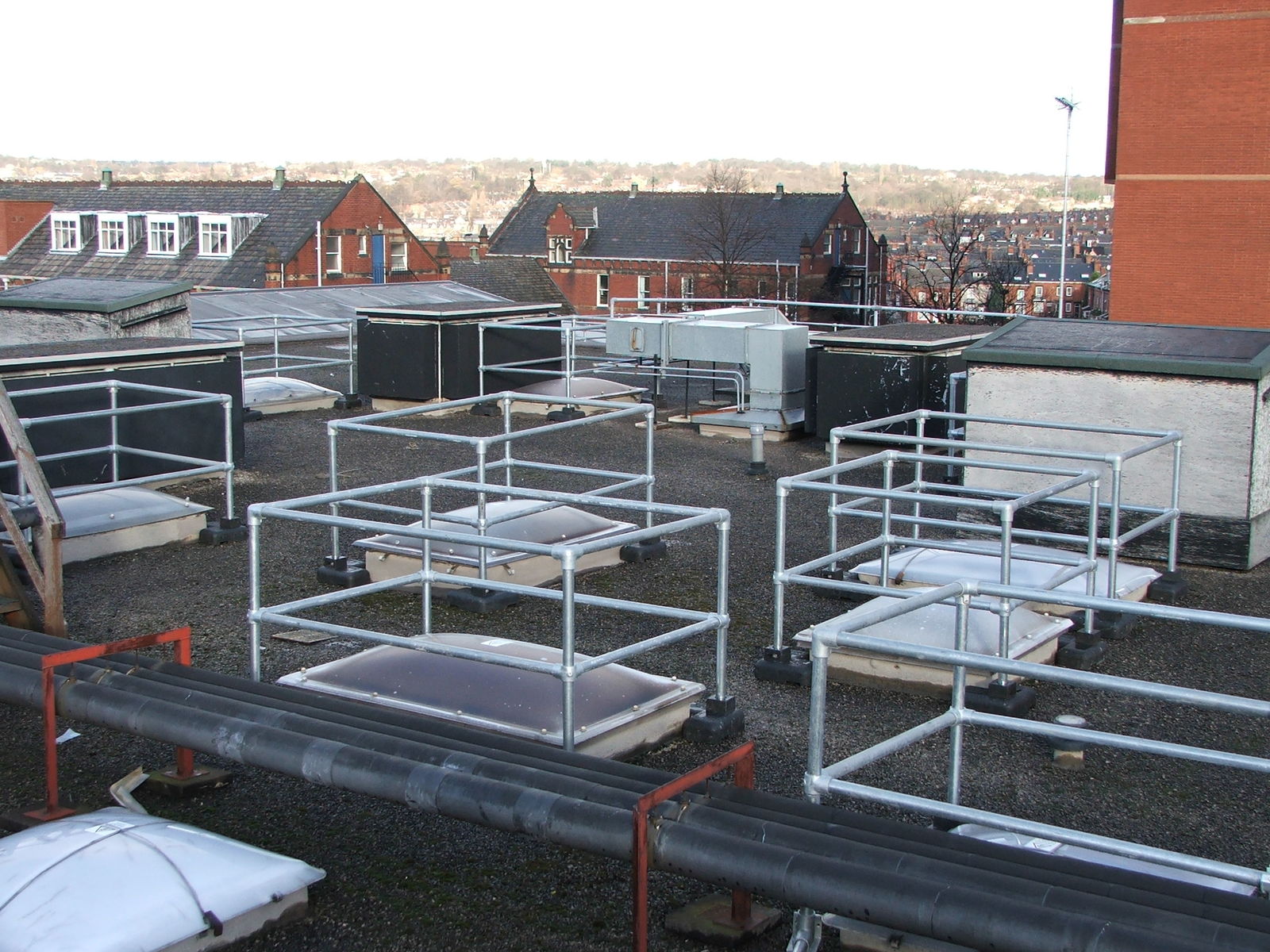

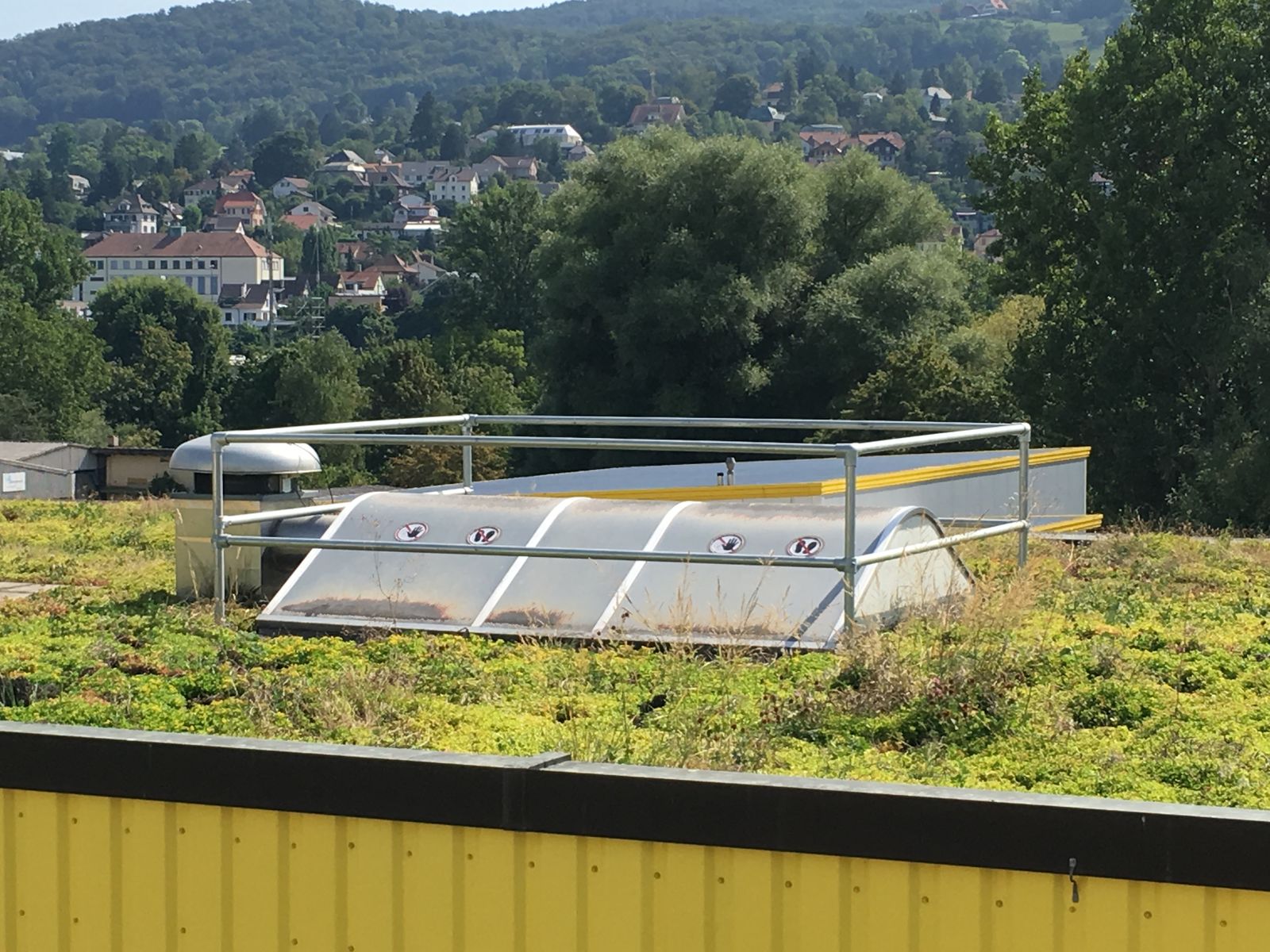

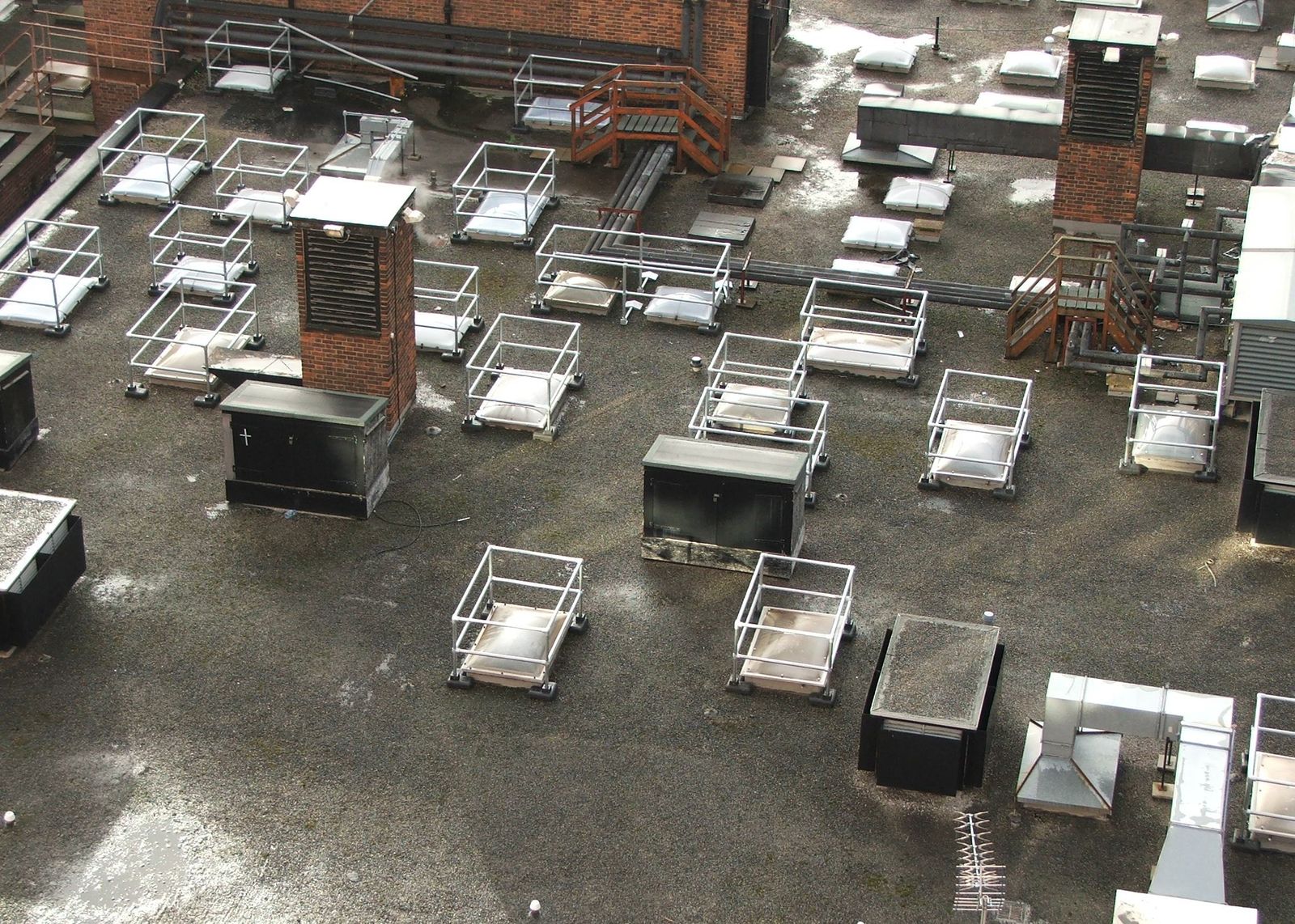

Kee Dome^® is a modular system designed specifically to prevent falls through skylights, roof lights and dome lights. The modular Kee Dome system allows contractors and maintenance crews to access rooftops for repair and maintenance work safely and easily without the risk of falling through glazed areas.

Why do you need Kee Dome Skylight Railing?

Quick Assembly

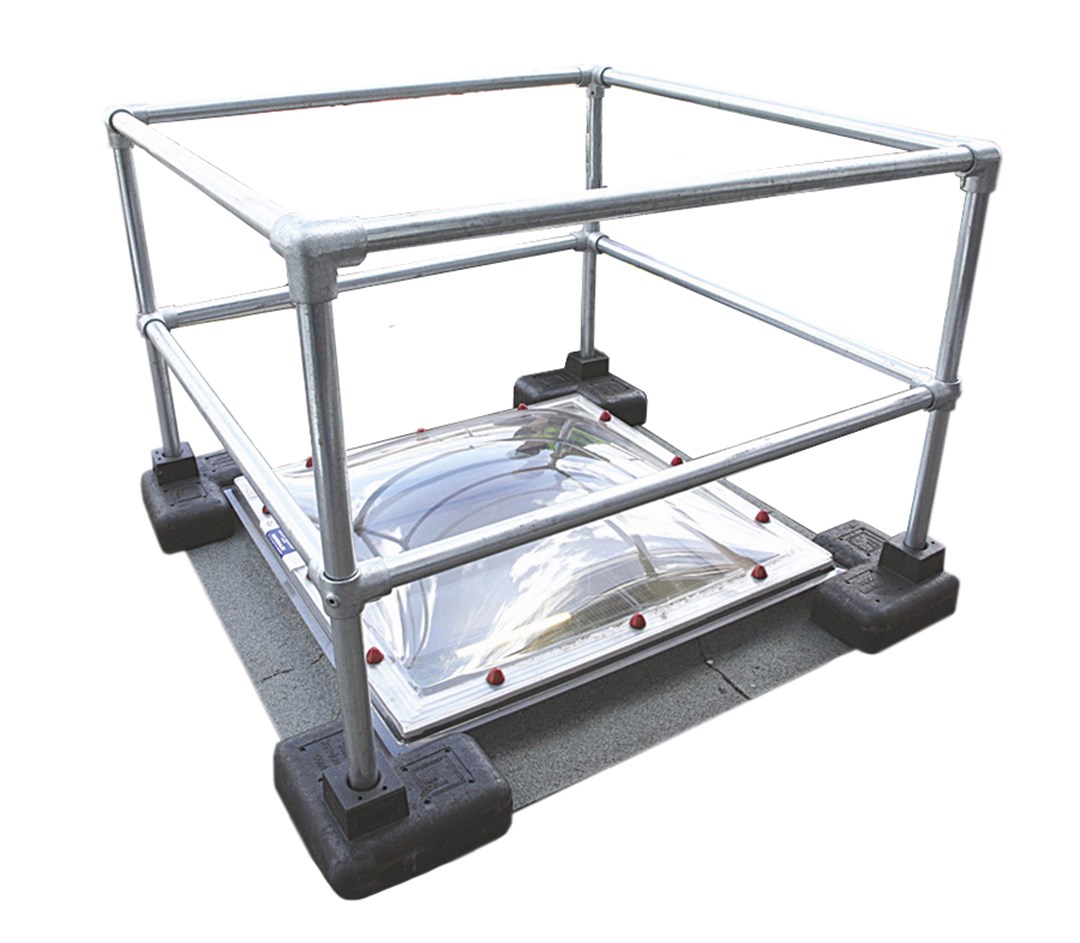

The Kee Dome^® system has standard components which can be assembled around the designated area with maximum speed. These include vertical posts, hand and knee rails with associated 90° corner components, and special recycled PVC feet with clamping rings.

Fully Modular

Although designed as a permanent solution, the Kee Dome^® system is fully modular, so it can also be expanded to suit any size skylight. It’s one solution for many different sizes. The system is suitable for use on all roof surfaces, with a maximum pitch of 3°.

Fully Compliant

Kee Dome^® uses industry-leading Kee Klamp^® components that are galvanised, making the system long-lasting and virtually maintenance-free. Kee Dome^® has also been independently tested to BS EN ISO 14122 Part 3 and OSHA Standard 29 CFR 1910.23.

Key Features

Versatile

Fits square and rectangular skylights, rooflights and dome lights.

Modular System

All sizes of raised roof lights can be protected with the same product.

Simple Installation

The Kee Dome^® system can be assembled using simple hand tools.

Overview of Kee Dome^® Skylight Railing

Protecting People from a Dangerous Hazard

Kee Dome creates a barrier around the skylight to prevent workers from contacting the skylight. This system protects the skylight with a non-penetrating railing without damaging or puncturing the roof.

Highest standards for off-the-ground safety

Kee Dome is designed to be compliant with OSHA 1910.29(b)(3) and 1910.28(b)(3)(i)(B)
Complies with BS EN ISO 14122 Part 3

Certified at our advanced testing facility

Kee Safety runs one of the world’s leading test and training centres at its UK Head Office. Run by a team of industry experts, this state-of-the-art facility ensures Kee Safety meets the needs of its customers, provides them with fully compliant products, and drives new innovation with the purpose of separating people from hazards.

Frequently Asked Questions

General

- My skylight is extremely large, will Kee Dome Work?

  Yes, Kee Dome’s modular design is able to protect the largest of skylights.
- I need to protect skylights on a metal roof, can I use Kee Dome?

  Kee Dome is recommended for use on flat membrane roofs only. We do have custom railing solutions for metal roofs, however, simply contact one of our experts to start solving your problem today.
- Why would I use Kee Dome vs. a skylight screen?

  Skylight screens are the most cost effective means of providing OSHA compliant fall protection solutions over skylights. In some cases, however, the skylight is too large or tall to install a screen. In these cases Kee Dome is the perfect solution. Additionally, in some cases clients are concerned about the grid-shadow a screen would create on the inside of the building and decide to use Kee Dome to eliminate this concern.
- I have bars on the inside of my skylight, are these fall protection?

  The bars welded inside of a skylight are commonly known as “burglar bars” and are designed to keep thieves out of your facility, not to protect from the impact of a fall. Furthermore, these bars do not protect workers or equipment below the opening from being struck by shards of the broken dome or potential biological contaminants should an impact occur. Kee Safety does not recommend using burglar bars as fall protection.
- Do I need to protect every skylight on my roof?

  In simple terms, yes. In 1910.28(b)(3)(i) OSHA states that employees must be protected from any hole 4' or higher above a lower level. However, we recommend partnering with a Kee Safety Expert to help prioritise the fall hazards on your roof using a risk-assessment based approach.

Trusted Fall Protection for Recognized Brands

Kee Dome Downloads

Document	Format
Rooftop Safety Whitepaper IND	PDF Download
Kee Dome Brochure IND	PDF Download
Kee Dome Operations and Maintenance Manual IND	PDF Download

Document	Format
Rooftop Safety Whitepaper IND	PDF Download

Document	Format
Kee Dome Brochure IND	PDF Download

Document	Format
Kee Dome Operations and Maintenance Manual IND	PDF Download

Services

Design and Installation

We offer full design and installation services that include a complete on-site survey. Also, we can produce comprehensive shop drawings to help you visualise the end result. With our detailed project outline, you can be confident that your project is professionally specified, and that all safety concerns and standards are addressed to your satisfaction.

Alternatively, you can specify and install most of our safety systems yourself with our easy-to-follow instructions – it all starts with a call to our knowledgeable staff!
